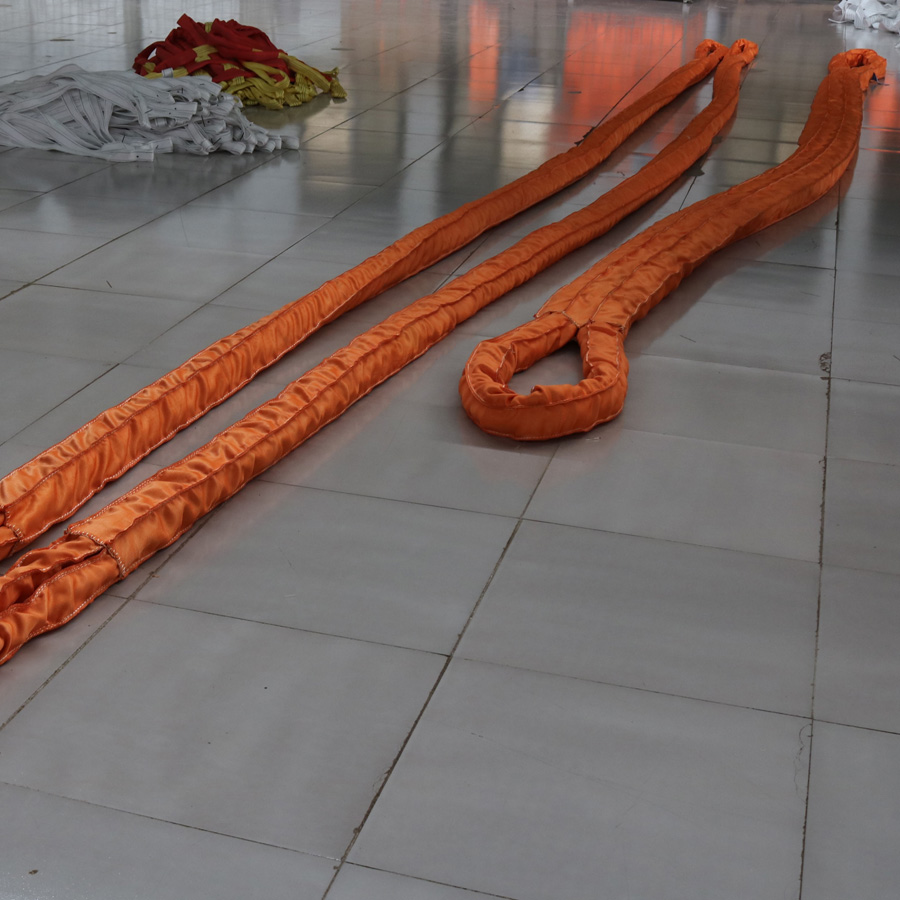

Round Sling
Round sling has the maximum load up to 3000T, effective length up to lOOm, safety factor adopted is normally 7:1,6:1.
Round sling is made of high tension industrial yarn (100%PES), the strands inside are as a form of endless cycle. The outside sleeve is also made of 1OO%PES, not for the Loading, but to protect the strands inside.
FOB MOQ:100PCS.Price$ base on the order quantity and it is negotiable.
Round Sling YXS Type
Round sling has the maximum load up to 3000T, effective length up to lOOm, safety factor adopted is normally 7:1,6:1.
Round sling is made of high tension industrial yarn (100%PES), the strands inside are as a form of endless cycle. The outside sleeve is also made of 1OO%PES, not for the Loading, but to protect the strands inside.
Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and unloading or for use at a building site. The round slings will protect items being lifted, if the sling is damaged badly, the outside sleeve is breakage, and the outside strands will go out, so the sling can not use any more. Their sturdy core and a covering layer will guarantee a long serviceable life, even when in continuous use, round slings are also repairable.
Back
Round sling has the maximum load up to 3000T, effective length up to lOOm, safety factor adopted is normally 7:1,6:1.
Round sling is made of high tension industrial yarn (100%PES), the strands inside are as a form of endless cycle. The outside sleeve is also made of 1OO%PES, not for the Loading, but to protect the strands inside.
Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and unloading or for use at a building site. The round slings will protect items being lifted, if the sling is damaged badly, the outside sleeve is breakage, and the outside strands will go out, so the sling can not use any more. Their sturdy core and a covering layer will guarantee a long serviceable life, even when in continuous use, round slings are also repairable.
| Color | W.L.L. | Working load limi with 1 webbing sling | Working load limi with 2 webbing sling | |||||||||
| Straight lift | Choked lift | Lift in different angle | Straight lift up to | Choked lift up to | Straight lift up | Choked lift | ||||||
| 0°-7° | Bis7° | 7°-45° | 45°-60° | 45°-60° | 45° | 45° | 45°-60° | 45°-60° | ||||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8 | ||
| Purple | WLL1T | 1000 | 800 | 2000 | 1400 | 1000 | 700 | 500 | 1400 | 1120 | 1000 | 800 |
| Green | WLL2T | 2000 | 1600 | 4000 | 2800 | 2000 | 1400 | 1000 | 2800 | 2240 | 2000 | 1600 |
| Yellow | WLL3T | 3000 | 2400 | 6000 | 4200 | 3000 | 2100 | 1500 | 4200 | 3360 | 3000 | 2400 |
| Grey | WLL4T | 4000 | 3200 | 8000 | 5600 | 4000 | 2800 | 2000 | 5600 | 4480 | 4000 | 3200 |
| Red | WLL5T | 5000 | 4000 | 10000 | 7000 | 5000 | 3500 | 2500 | 7000 | 5600 | 5000 | 4000 |
| Blown | WLL6T | 6000 | 4800 | 12000 | 8400 | 6000 | 4200 | 3000 | 8400 | 6720 | 6000 | 4800 |
| Blue | WLL8T | 8000 | 6400 | 16000 | 11200 | 8000 | 5600 | 4000 | 11200 | 8960 | 8000 | 6400 |
| Orange | WLL10T | 10000 | 8000 | 20000 | 14000 | 10000 | 7000 | 5000 | 14000 | 11200 | 10000 | 8000 |
| Orange | WLL12T | 12000 | 9600 | 24000 | 16800 | 12000 | 8400 | 6000 | 16800 | 13440 | 12000 | 9600 |
