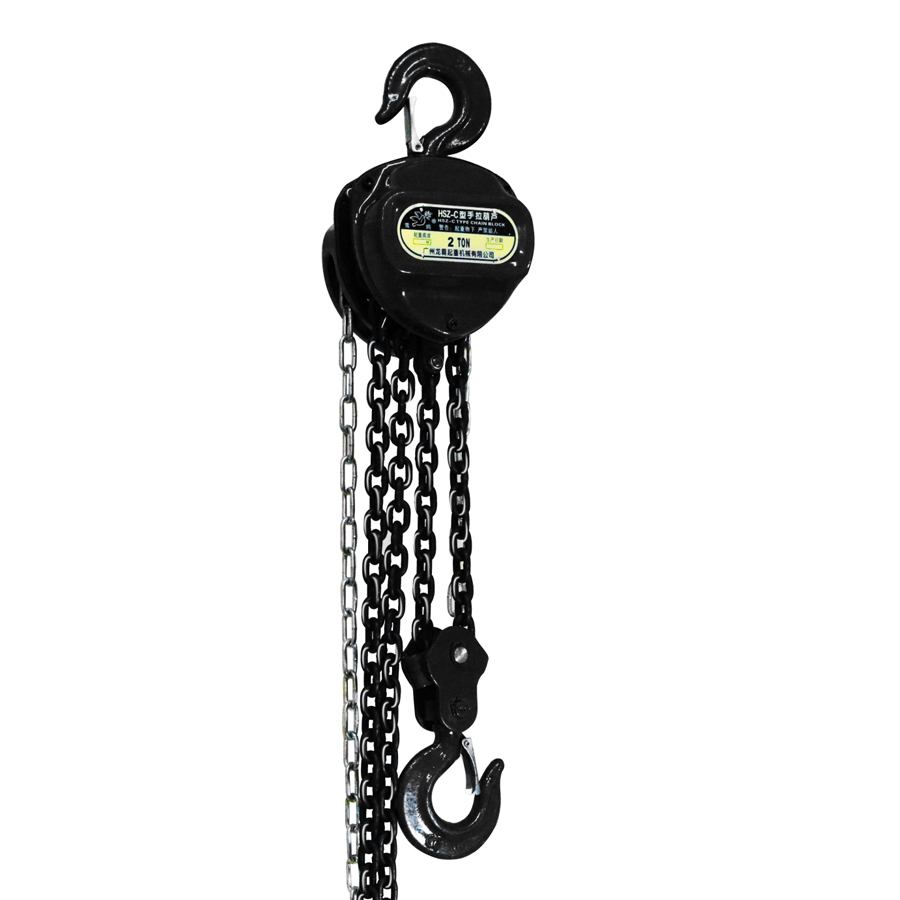

Manual Chain Hoist CK Type
1. Superior Grade 100 load chain-WAFIOS link, Din standard
2. Forged and heat treated load hooks with batch trace ability and stretch indicators
3. Double pawls supporting fail-safe brake mechanism
Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.
FOB MOQ:50PCS.Price$ base on the order quantity and it is negotiable.
Model: SLH-C
Manual Chain Hoist
Technical Benefits
1. Superior Grade 100 load chain-WAFIOS link, Din standard
2. Forged and heat treated load hooks with batch trace ability and stretch indicators
3. Double pawls supporting fail-safe brake mechanism
Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.
4. Asbestos free brake linings
5. Forged safety latch with manufacture
6. Individually proof load tested to 1.5xWLLwith individual serial number
7. Light weight yet durable
Steel frame construction is rugged yet lightweight and easy to handle.
8. Low maintenance
Enclosed housing allows outdoor use. The load brake requires no lubrication.
9. Quality features
(1) Wheel cover with guide slots against jamming and slipping of chain.
(2) Forged swivel hooks and latches prevent twisting of chain and reduce unintentional unhooking of the unit or the load.
(3) Chain guide and stripper ensure proper fit of chain over pocket wheel.
(4) Two-stage gear reduction with hardened gears and pinion.
Back
Manual Chain Hoist
Technical Benefits
1. Superior Grade 100 load chain-WAFIOS link, Din standard
2. Forged and heat treated load hooks with batch trace ability and stretch indicators
3. Double pawls supporting fail-safe brake mechanism
Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.
4. Asbestos free brake linings
5. Forged safety latch with manufacture
6. Individually proof load tested to 1.5xWLLwith individual serial number
7. Light weight yet durable
Steel frame construction is rugged yet lightweight and easy to handle.
8. Low maintenance
Enclosed housing allows outdoor use. The load brake requires no lubrication.
9. Quality features
(1) Wheel cover with guide slots against jamming and slipping of chain.
(2) Forged swivel hooks and latches prevent twisting of chain and reduce unintentional unhooking of the unit or the load.
(3) Chain guide and stripper ensure proper fit of chain over pocket wheel.
(4) Two-stage gear reduction with hardened gears and pinion.
| Product code | Capacity (t) |
Standard lift (m) |
Test load (t) |
Pulling Efforts (kg) |
Chain fall No. | Load chain Dia (mm) |
Dimensions(mm) | Net Weight (kg) |
|||
| A | B | C | D | ||||||||
| SLH-C005 | 0.5 | 3.0 | 0.75 | 22 | 1 | 6 | 125 | 111 | 24 | 134 | 8.1 |
| SLH-C010 | 1.0 | 3.0 | 1.50 | 31 | 1 | 6 | 147 | 126 | 28 | 154 | 11.2 |
| SLH-C015 | 1.5 | 3.0 | 2.25 | 35 | 1 | 8 | 183 | 141 | 34 | 192 | 15.3 |
| SLH-C020 | 2.0 | 3.0 | 3.00 | 30 | 1 | 8 | 215 | 163 | 38 | 224 | 17.1 |
| SLH-C030 | 3.0 | 3.0 | 4.50 | 35 | 2 | 8 | 183 | 141 | 38 | 192 | 18.0 |
| SLH-C050 | 5.0 | 3.0 | 6.30 | 39 | 2 | 10 | 215 | 163 | 48 | 224 | 21.7 |
| SLH-C100 | 10.0 | 3.0 | 12.50 | 41 | 4 | 10 | 360 | 163 | 64 | 224 | 65.2 |
| SLH-C200 | 20.0 | 5.0 | 25.00 | 41x2 | 8 | 10 | 585 | 191 | 82 | 224 | 194.0 |
| SLH-C300 | 30.0 | 5.0 | 37.50 | 47x2 | 12 | 10 | 705 | 485 | 75 | 85 | 458.0 |
