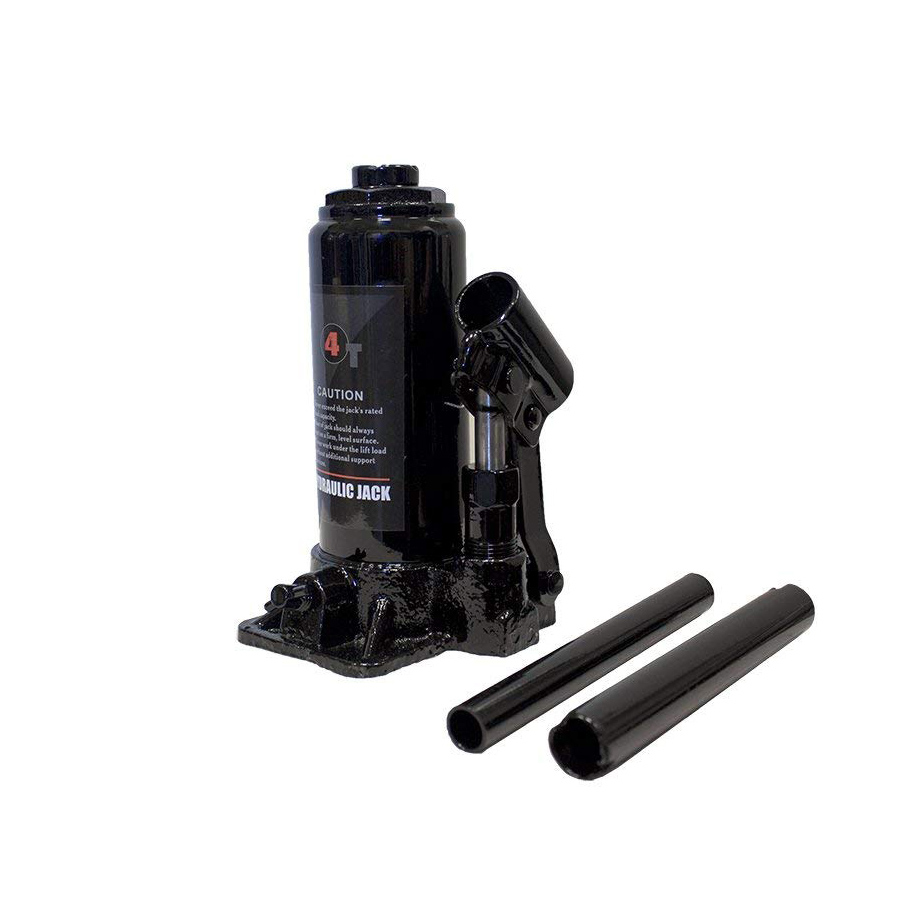

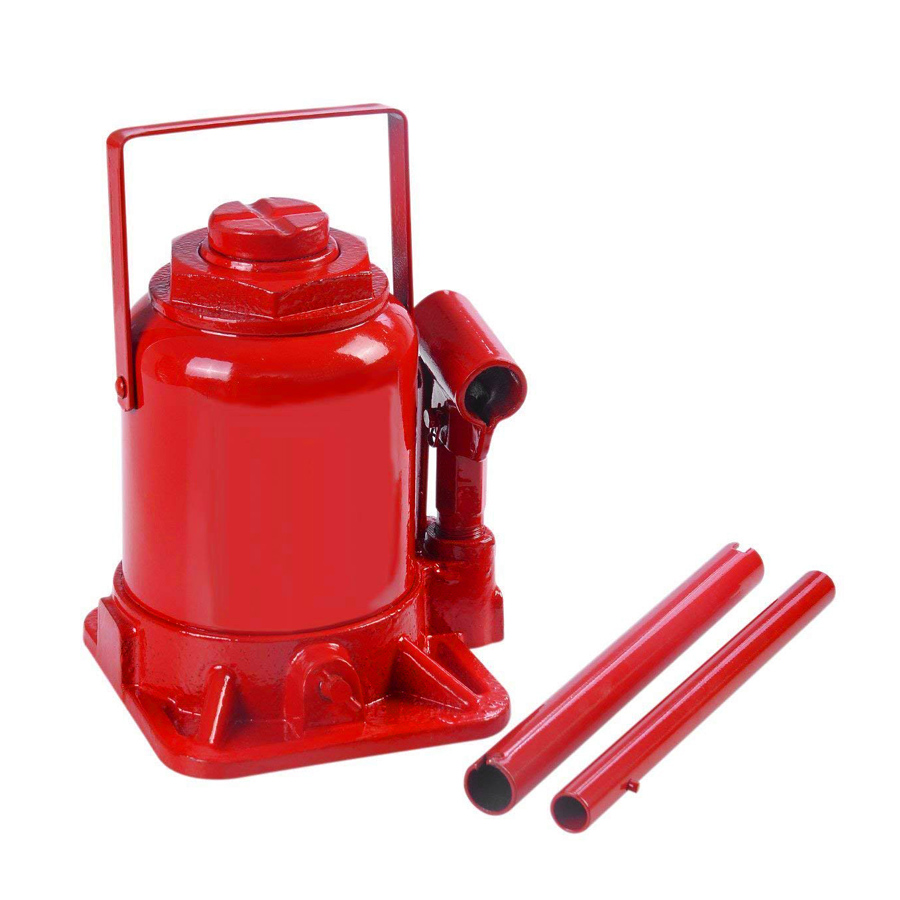

Hydraulic Bottle Jack
With a large stroke and strong lifting capacity, Portable Hydraulic Car Jack is the best choice for maintenance, manufacturing, construction and other operations. All models can be processed according to customer requirements, and the bottom is designed with mounting holes, which makes the installation and positioning convenient.
FOB MOQ:50PCS.Price$ base on the order quantity and it is negotiable.
Model:YLJ
Hydraulic Bottle Jack Standard Lifting Garage Jack
Hydraulic Bottle Jack, Standard Type
Back
Hydraulic Bottle Jack Standard Lifting Garage Jack
Hydraulic Bottle Jack, Standard Type
| Model | Capacity (Ton) |
Min. H (mm) |
Lifting H. (mm) |
Adjust H. (mm) |
N.W. (kg) |
Qty/Ctn (pcs) |
Meas. (cm) |
20'FCL (pcs) |
| YLJ02 | 2 | 158 | 90 | 60 | 2.4 | 10 | 51x24x19 | 7300 |
| YLJ02B | 2 | 158 | 90 | 60 | 2.4 | 6 | 34x34x25.5 | 4536 |
| YLJ04 | 3 or 4 | 180 | 110 | 60 | 3.3 | 5 | 58x13x21 | 5300 |
| YLJ04B | 3 or 4 | 180 | 110 | 60 | 3.3 | 6 | 55x22x30 | 3906 |
| YLJ06 | 5 or 6 | 200 | 125 | 80 | 4.5 | 5 | 63x14x23 | 3920 |
| YLJ06B | 5 or 6 | 200 | 125 | 80 | 4.5 | 4 | 40x27x33 | 3024 |
| YLJ08 | 8 | 200 | 125 | 80 | 5.6 | 4 | 28x28x23 | 3140 |
| YLJ10 | 10 | 200 | 125 | 80 | 6.3 | 2 | 30x15x23 | 2790 |
| YLJ12 | 12 | 210 | 125 | 80 | 7.5 | 2 | 32x16x24 | 2340 |
| YLJ12B | Low 12 | 170 | 85 | 50 | 6.4 | 2 | 32x16x24 | 2750 |
| YLJ16 | 15 or 16 | 225 | 140 | 80 | 9 | 2 | 33x17x26 | 1956 |
| YLJ20 | 20 | 235 | 145 | 60 | 11.5 | 2 | 37x18x27 | 1530 |
| YLJ20B | Low 20 | 190 | 95 | 50 | 9.6 | 2 | 37x18x22 | 1800 |
| YLJ25 | 25 | 250 | 160 | - |
